Automatic Rotary Botltle Washing Machine

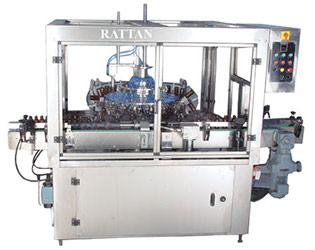

Automatic Rotary Bottle Washing Machine


DESCRIPTION: Fully Automatic Rotary Bottle Rinsing Machine is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc.

Price: On Request

  • Model: R-ARBWM
Tags :

Automatic Rotary Bottle Washing Machine, Automatic Rotary Bottle Rinsing Machine

  • Product Specifications
  • Details
  • Quick Inquiry

Fully Automatic Rotary Bottle Rinsing Machine is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rinsed from inside as well as from outside and get unloaded automatically at out feed conveyer. These machines are of robust design for trouble free operations Change over to different size of bottles with same neck can be done with within minimum time, since wing nut are uses.

FEATURES:

  • Sturdy & robust heads to invert bottles over spray nozzles.
  • Faster size changeover time.
  • Rinsing from both the side i.e. Outside and Inside of the bottle.
  • Minimum investment for change parts for different size of bottles.
  • Multistage (both air/water) rinsing machine can also be designed.
  • Machine has separate round tray for spray water collection prior to its drain.
  • Better gripping by gripper assemble to avoid turning of bottles during their travel in the machine.
  • Fully Automatic operation with PLC control and Centralized Lubrication.
TECHNICAL DETAILS:

Models (Heads)  Length (mm)  Width (mm)  Height (mm)  Output (bpm)  Rinsing Cycle
20 2720 1780 1980 60-120 2 STAGE
24 2720 2030 1980 80-150 2 STAGE
30 2720 2285 1980 100-180 2 STAGE
40 3225 2870 1980 150-240 2 STAGE
