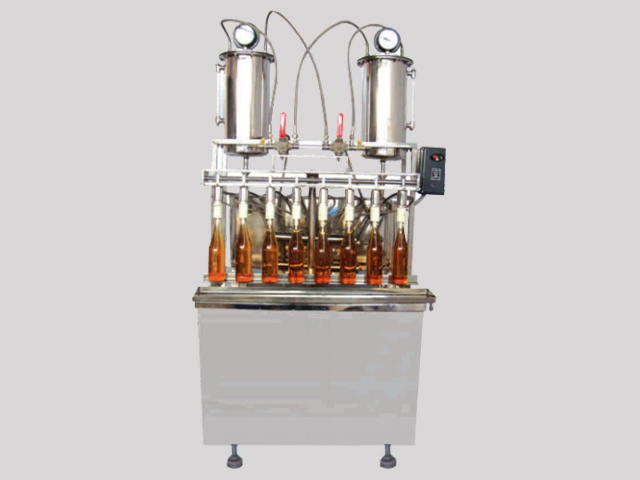

Rattan Semi-Automatic Liquid Filling Machine is very simple, Piston base volumetric filler. It gives very accurate volumes with remarkable speed. It is widely use in Pharmaceutical, Chemical, Paint, Cosmetic, Oil, Liquor Industries.
Designed for stable and reliable operation.
Optimised for efficient production output.
Built using dependable industrial components.
Available as per project requirements.
Complete overview and product information.
Rattan Semi-Automatic Liquid Filling Machine is very simple, Piston base volumetric filler. It gives very accurate volumes with remarkable speed. It is widely use in Pharmaceutical, Chemical, Paint, Cosmetic, Oil, Liquor Industries.
Recommended industrial usage areas.
1. Semi-Viscous & Viscous Liquid 2. Lube Oil. 3. Edible Oil. 4. Vegetable Oil. 5. Mustard Oil. 6. Syrup. 7. Pharmaceuticals. 8. Juice, etc.
Main performance and construction benefits.
1. Accuracy ± 1 % in single doze. 2. Rigid vibration free construction for trouble free performance. 3. Stainless Steel elegantly matt finished body. 4. Elegant and easy control panel for total control on operation. 5. Portable And Compact Design. 6. All Contact Parts Are Of SS 304/316 Grade. 7. Very Easy To Change Over. 8. Maintenance Free Modal
Detailed technical data and machine configuration.
| 1) | Filling range | 2ML to 1Lt. (with some suitable change over) |
| 2) | Motor | 0.75 or 1H.P. / 440V / 3PH |
| 3) | Output | 700 to 2000 BPH (depend on volume & viscosity of the product) |
| 4) | Fill accuracy | +- 1% |
| 5) | Dimension | 360 X 460 X 650MM |
| 6) | Net weight | 110 kg. (approx.) |
