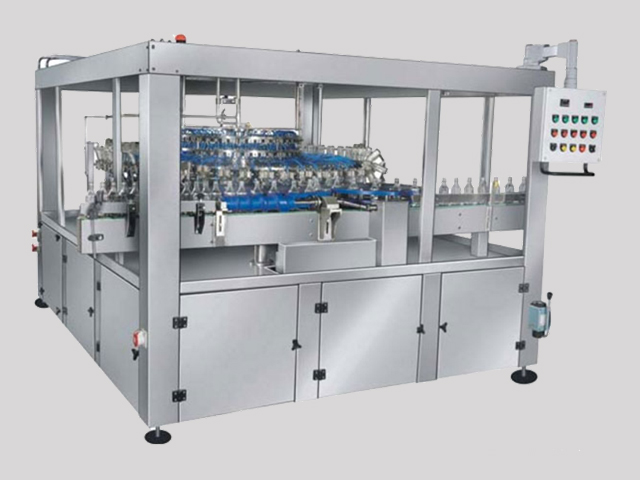

Rotary Rinser

Description

Fully Rotary Rinser is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rinsed from inside as well as from outside and get unloaded automatically at out feed conveyer. These machines are of robust design for trouble free operations Change over to different size of bottles with same neck can be done with within minimum time, since wing nut are uses.

Rotary Rinser

Features

Fully Automatic Rotary Bottle Rinsing Machine is ideal for all type of bottles & finds wide application in Liquor, Mineral Water, Pharmaceuticals, Juice, Food, Cosmetics, etc. Bottles enter the machine through its inbuilt slat conveyer, get loaded automatically rinsed from inside as well as from outside and get unloaded automatically at out feed conveyer. These machines are of robust design for trouble free operations Change over to different size of bottles with same neck can be done with within minimum time, since wing nut are uses.

Technical Specification

MODELS (HEADS) LENGTH (MM) WIDTH (MM) HEIGHT (MM) OUTPUT (BPM) RINSING CYCLE
20 2720 1780 1980 60-120 2 STAGE
21 2720 2030 1980 80-150 2 STAGE
30 2720 2285 1980 100-180 2 STAGE
40 3225 2870 1980 150-240 2 STAGE
