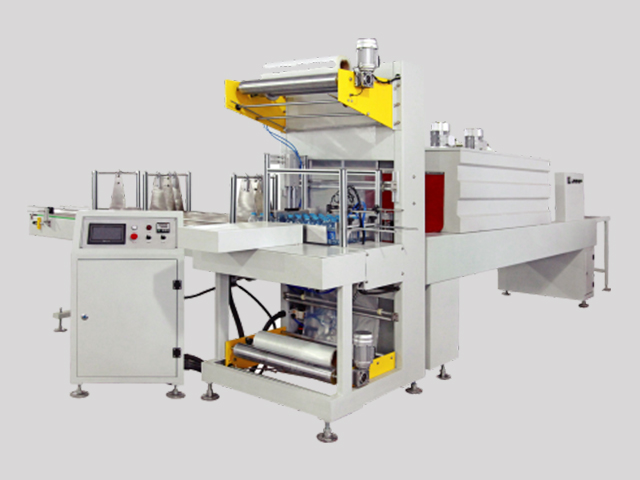

Web Sealer With Shrink Tunnel

Description

Offered by us is a high quality range of Web Sealers to the esteemed clients, as per their specific requirements. These machines are fabricated in compliance with the international quality standards. In addition to this, with the aid of our wide distribution network, we make sure to deliver the ordered products the clients’ premises within the committed time frame. Web Sealer Machine can be pushed manually or pneumatically. After the process of sealing & cutting, the products enter the shrink tunnel automatically.

Web Sealer with Shrink Tunnel

Salient Features

1. Two roll of shrink film operation.
2. Automatic feeding of product through conveyor system.
3. P.L.C. Controlled System.
4. With or without automatic collating.
5. Heavy-duty conveyor system.
6. High-speed blower system with continuous rating.
7. High quality heating element.
8. Machine can be attached with any other packing machine or operation to give online application.
8. The machine is suitable for shrink packing both single object and combined objects.

Applications

1. Shrink packing for many industries, such as Distillery, Brewery, Food, Beverages, Printing, Pharmacy, etc.
2. It’s suitable for all kinds of shrink films such as PVC, POF, PP , PE etc.

Technical Specification

Product Web Sealer Shrink Tunnel
Voltage (V/Hz) 300/50 3PH 380/50 3PH
Power Consumption ( kw) 1.5 2.2
Packing Speed (pcs/min) 0-12 0-10
Max Packing Dimension (mm) 500x290x380 (LxWxH) 1450x550x400
Max sealing length (mm) 650 -
Height of conveyor (mm) 800 ± 50 (Adjustable) -
Working air pressure (Kgf/m2) 6/td> -
Dimension (LxWxH) (mm) 1370X920X1800 (LxWxH) 2550x850x1500
Conveyor Loading(kg) - 40
Heating Time ( Minutes) - 10
Cooling Time ( Minutes) - 15
Weight (kg) 700 300
